Arburg - Allrounder 570 H 2000-1300DE-INJ-ARB-2014-00001

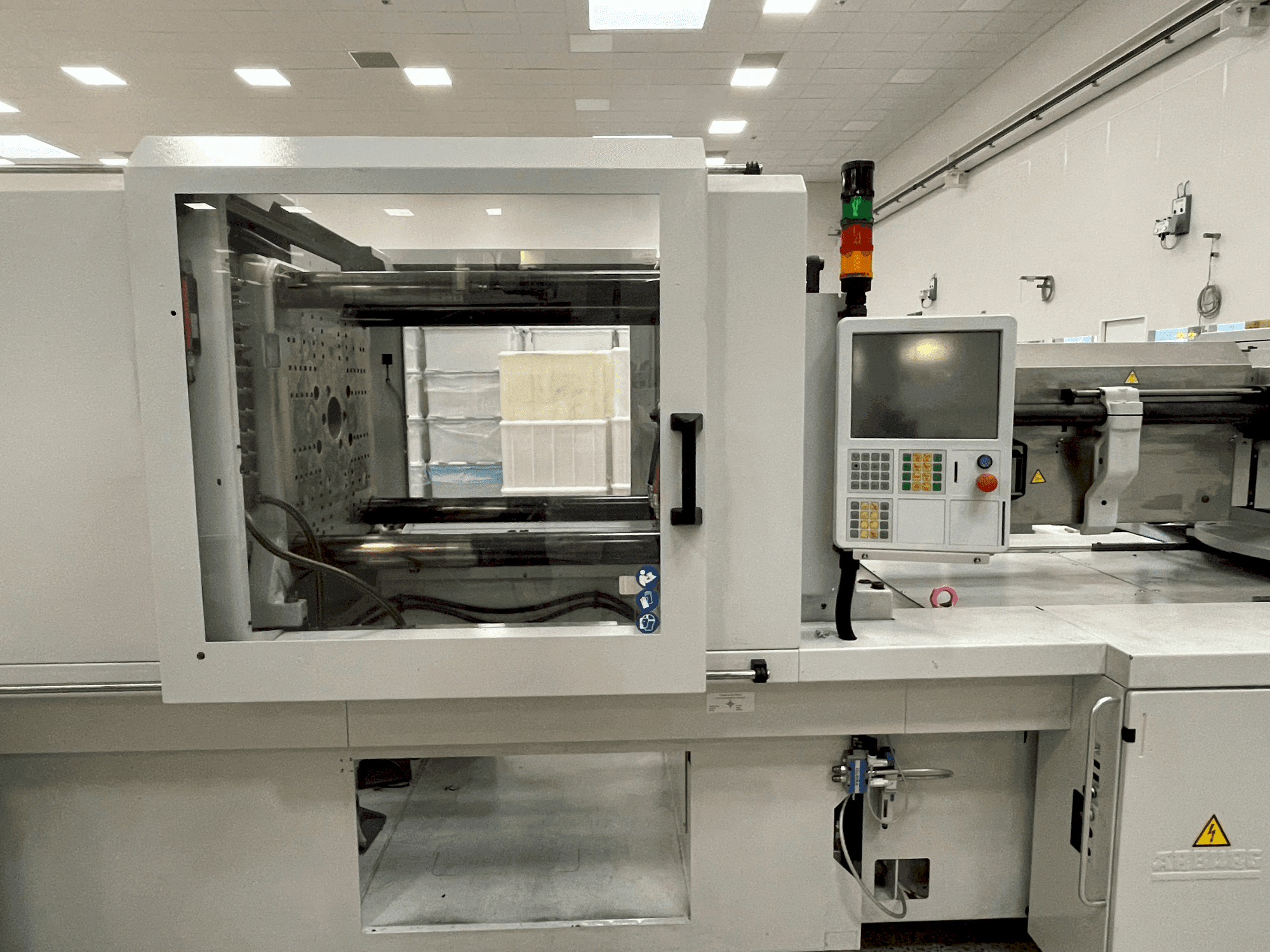

This ARBURG Allrounder 570 H 2000-1300 HIDRIVE Injection Moulding Machine was manufactured in 2014 in Germany. It has a clamping force of 2000 kN and is equipped with thermoplastic cylinder of 60mm with long barrier screw (open nozzle 60 mm, nozzle tip radius 15, heating tape for open nozzle). In addition it features a servoelectric mold height adjustment with automatic clamping force control, a central clamping platen set Ø 125 mm, a maximum installation dimension increased to 650 mm and injection pressure increased by 10% (max. 2500 bar depending on screw). See overview of full configuration attached as PDF (DE) below. Important remark: The injection unit is leaking, there is a cost estimate from Arburg for approx. 15,000 euros net including assembly. This defect has not yet been rectified as the machine is not currently being used. The sale does not include the housing, any hoppers visible in the pictures or other accessories. The machine has already been taken off the grid and cannot be inspected in operation. Pump hours at at 63,202 and operating hours at 50,361 h.
