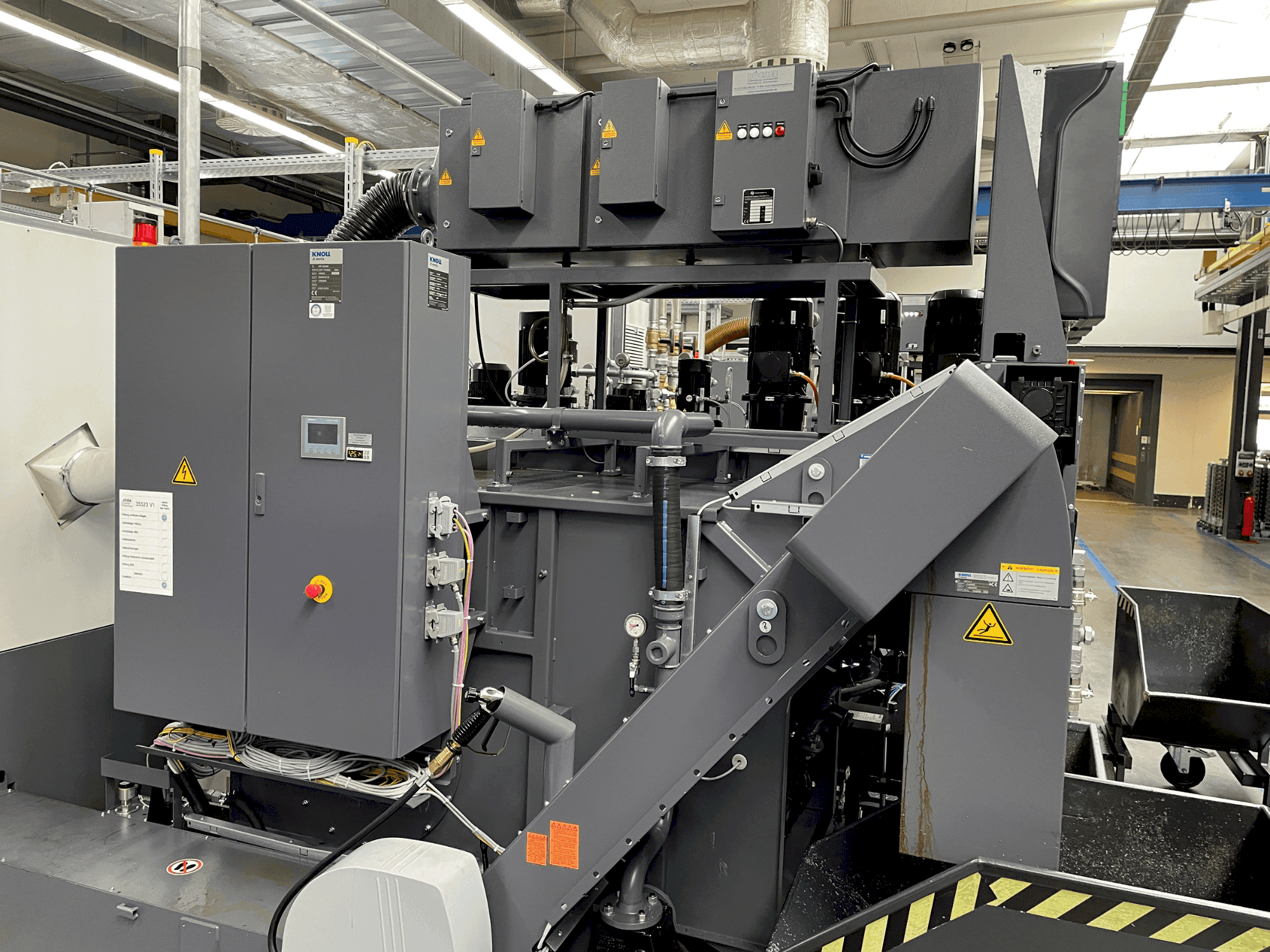

This KNOLL KF 400/3400 was manufactured in 2019. It features a scraper belt conveyor and a compact filter system designed for machining processes with specific environmental conditions. The system includes a clean tank with a 3400-liter capacity and a variety of pumps, including a centrifugal process pump and a screw pump, ensuring efficient fluid movement. Ideal for handling cooling lubricant emulsions, it also includes plate heat exchangers for effective cooling. Contact us for more information.

Resumen

  • marca: KNOLL
  • año: 2019
  • MODELO: KF 400/3400
  • tipo de aplicación: Otras máquinas herramienta
  • Ubicación: Alemania
  • tipo de máquina: Máquina herramienta

Información adicional

Additional equipment

  • Scraper belt conveyor type 400 K-1, medium emulsion.
  • System compact filter KF type KF400/3400.
  • Compact filter KF 400 with position drive/inlet KF right, take-up unit KF yes, fleece holder KF at the rear (externally mounted).
  • Clean tank, flat, rectangular shape, dimensions 2500x1500x1100mm, capacity 3400l, material steel, sheet thickness 3mm, tank cover sheet steel.
  • Centrifugal pump, process pump function, flow rate 320l/min, pressure 5 bar, submersible version.
  • Screw pump KTS 32: HD piston bushing (KB), spindle pitch 48, PTC thermistor and frequency-controlled, flow rate 65l/min and 80 bar pressure.
  • Plate heat exchanger 25 plates: dimensions 424x323x670mm, medium to be cooled, cooling capacity 40 kW.
  • Plate heat exchanger 15 plates: plate material 1.4404, cooling capacity 16 kW.
  • Circulation and PHE supply pump: flow rate 50 litres/min, pressure 5.5 bar.
  • Cooling lubricant system for emulsions
